Definition :

Type D FIBC bags are made from static-dissipative fabric designed to safely discharge static electricity into the atmosphere without the need for grounding. They prevent brush discharges, propagating brush discharges, and spark discharges, which can ignite flammable gases, vapors or combustible dust.



Key Features:

Material:Made from static-dissipative woven polypropylene fabric (“Crohmiq”,“D-Sack” or other proprietary blends);

Contains electrostatically safe threads or filaments woven throughout the fabric;

No need for grounding cables or conductive grounding.

Satety:Complies with IEC 61340-4-4 standards for static control

Dimension (L x W x H): Customizable

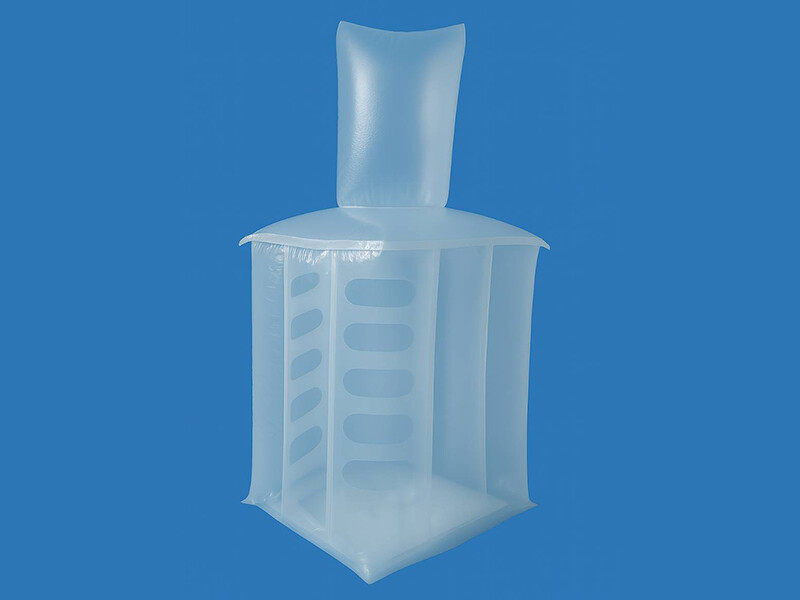

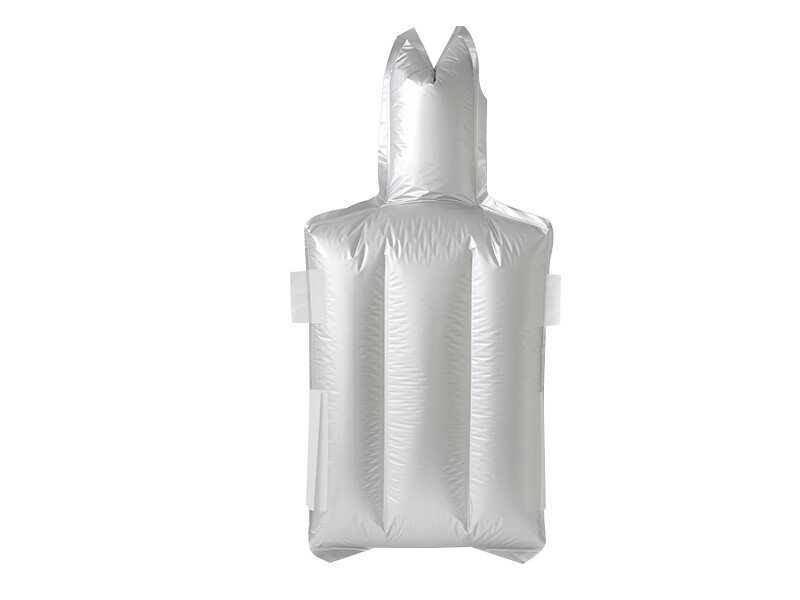

Liner Option:PE bag、PA film bag、PA/AL/PE film、PE/AL/PA/PE film、PET/AL/PA/PE、PA/AL/PA/PE

Load Capacity:500 kg - 2,000kg

SWL/SF:5.1,6.1, certified for single or multiple use

Loop Design:Corner/Cross Corner Loop

Filling and Discharging Options: Filling Spout/Star Closure/Iris Closue/Top Skit, Discharge Spot with Star Closure/Double Discharge Spout/Discharge Spout with Iris Closure/Discharge Spout/Flat Bottom or customized options



Ideal For:

Explosive dust atmospheres

Flammable solvent-handling areas

Chemical powders (resins,pigments,carbon black)

Battery raw materials (nickel,lithium,cobalt compounds)

Pharmaceuticals

Bioplastics and engineering plastics

Advantages:

Reduces risk of electrostatic sparks in hazardous environments

Customizable size, liner and printing to meet your specific packaging needs

Certified for international shipping and material safety compliance

Excellent moisture and contamination protection when used with inner liners



Customization Available:

Printing (1 -4 colors)

Logo and handling instructions

UN Certified options

Inner liner options: PE, Aluminum Foil



Packaging & Shipping:

Folded and palletized

Usually 80-100 pcs/pallet

Shrink-wrapped or bagged for protection

Quality Certifications:

ISO 9001, ISO 14001

SGS/BV test

CE, REACH and RoHS compliant materials available



General:

Requirement for dust environments with ignition energy greater than 3mJ(Applicable to Type B bulk bags, Type C bulk bag and Type D bulk bags)

A Type D bulk bag is intended for use in the presence of flammable vapours or gases or flammable dusts with an ignition energy of 3mJ or less

Type D FIBCs are made of a material with an insulating layer (coated film or sheet) on the inside of the FIBC.

All layers of a multi-layer FIBC must maintain close and secure contact.
